Executive Brief & Architectural Matrix
Core Objective: This technical white paper serves as an industrial benchmark for global procurement officers, real estate developers, commercial stone fabricators, and architectural specifiers. It outlines the material science, dimensional thresholds, thickness dynamics, and logistics optimization for sourcing Calacatta quartz slabs. By establishing rigid factory metrics and mathematical nesting guidelines, this document aims to eliminate fabrication waste, mitigate structural failures, and maximize container utilization.
1. Factory Production Standards & Petrochemical Material Logic
The Bretonstone Vibro-Compression Manufacturing Synthesis

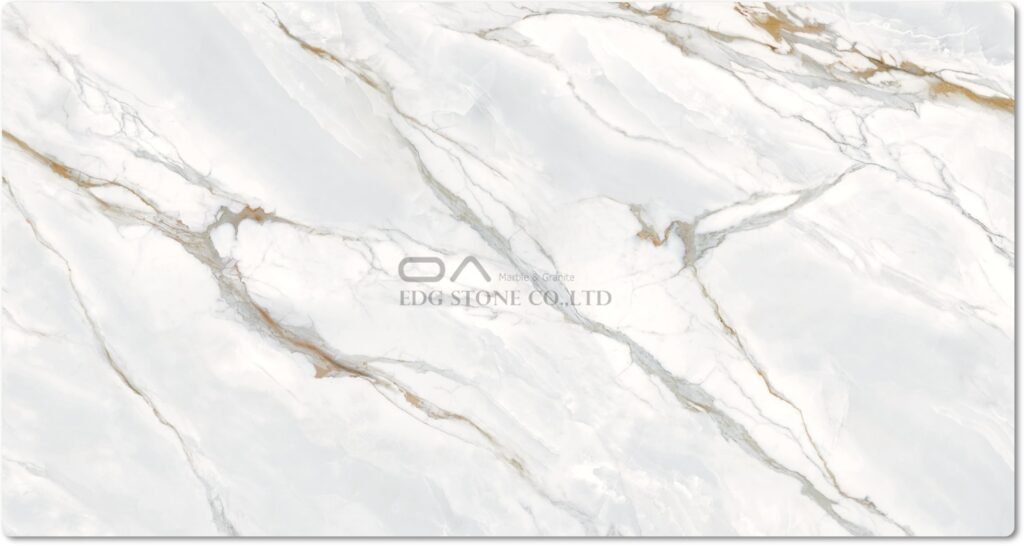

The manufacturing of premium Calacatta quartz slabs relies on an advanced process derived from vacuum vibro-compression technology (originally engineered via Bretonstone systems). The process initiates with the rigorous selection of raw geological material. High-purity crystalline silica ($SiO_2$), boasting a Mohs hardness of 7, is crushed, washed, and magnetically separated to eliminate heavy metal contaminants that could compromise the optical purity of the background matrix.
[Raw Crystalline Silica (93%)] + [Unsaturated Polyester Resin (7%)] + [Silane Coupling Agents & Pigments]
│
▼
[Homogeneous Vacuum Blending]
│
▼
[Vein-Induction Engineering (Mechanical & Artisanal)]
│
▼
[High-Vacuum Vibro-Compression (100 Tons/m², <0.1 Bar)]
│
▼
[Multi-Zone Thermal Curing Tunnel (85°C to 110°C Exothermic)]
│
▼
[Multi-Head Automated Abrasive Calibration & Polishing]
The mineral aggregate is classified by granulometry into distinct fractions:
Coarse Grains (1.2–2.5 mm): Provide structural stability and impact fracture toughness.
Medium Grains (0.2–0.6 mm): Fill interstitial spatial voids.
Micro-Powder Quartz Flour (<0.045 mm): Forms a dense, non-porous paste when combined with the polymeric binder.
The material composition requires a precise balance:
This precise formulation is delivered to automated industrial mixers. Silane coupling agents (typically $\gamma$-methacryloxypropyltrimethoxysilane) are introduced at a concentration of 0.5% to 1.0% relative to the resin weight. The silane acts as a molecular bridge, forming covalent siloxane bonds ($\equiv Si-O-Si\equiv$) with the quartz aggregate surface and cross-linking with the organic polymer matrix during thermal cure. This molecular integration creates a highly hydrophobic barrier that ensures premium stain-resistant engineered stone surfaces.
Vein-Induction Engineering and Optical Chemistry
The distinctive, fluid veining characteristic of Calacatta quartz requires specialized vein-induction machinery integrated into the distribution system. Modern production facilities utilize computerized multi-axis distribution arms that deposit pigmented quartz slurry onto a moving conveyor belt.
To achieve the deep, multi-layered visual depth seen in natural Italian Calacatta marble, factories use a combination of automated mechanical distribution and artisanal hand-laying techniques:
Base Layer Deposition: A high-purity white quartz background paste is distributed into the primary mold frame.
Vein Tracing: CNC-controlled pigment injectors trace precise grey, charcoal, and gold veins using ultra-fine quartz pastes containing inorganic metal oxide pigments (such as titanium dioxide for bright whites, iron oxide black, and iron oxide yellow).
Manual Realism Adjustments: Master technicians manually refine key intersecting veins to eliminate artificial mechanical repetition, ensuring a natural, organic flow across the slab face.
Once the pattern is laid, the uncompacted mixture enters a high-vacuum vibro-compression press. The slab is subjected to a compaction pressure of up to $100\text{ tons/m}^2$ under a vacuum pressure of less than $0.1\text{ bar}$ ($10,000\text{ Pa}$). The simultaneous application of high-frequency vertical vibration (approx. 3,000 to 3,600 RPM) forces out air bubbles, compressing the material into a completely dense, non-porous slab.
Thermal Kinetics, Curing, and Mechanical Testing
Following compaction, the structural integrity of the slab is developed within a multi-zone thermal curing tunnel. The curing profile is governed by exothermic polymer kinetics. The slab passes through controlled heating zones:
Zone 1 (Pre-heating): Escalates temperature to $85^\circ\text{C}$ to initiate peroxydic decomposition of the catalyst.
Zone 2 (Cross-linking peak): Maintained between $105^\circ\text{C}$ and $110^\circ\text{C}$ to maximize the cross-linking density of the polyester matrix.
Zone 3 (Cooling phase): Controlled linear cooling down to $35^\circ\text{C}$ to prevent internal residual thermal stresses that can lead to warping or micro-fissures during polishing.
Temperature (°C)
110 ───┐ /─── Zone 2: Peak Cross-Linking (105°C - 110°C)
100 │ /
90 │ ┌────────┘ ◄─── Zone 1: Pre-heating (85°C)
80 │ /
50 │/ └─── Zone 3: Controlled Cooling
35 │─────────────────────────┐
└─────────────────────────┴───────────────────────────────► Time
To achieve ASTM-certified quartz surfaces, cured slabs must pass rigorous mechanical testing parameters. The calibrated slab goes through multi-head polishing lines featuring progressively finer diamond-grit abrasives (from 50-grit up to 3000-grit resin plates) to achieve a specular gloss rating greater than 85 units.
Every production batch is tested against global stone performance standards:
| Physical/Mechanical Property | Test Standard Reference | Required Industry Threshold | Premium Calacatta Quartz Metrics |
| Apparent Density | ASTM C97 / EN 14617-1 | $\ge 2.30 \text{ g/cm}^3$ | $2.42 – 2.48 \text{ g/cm}^3$ |
| Water Absorption | ASTM C97 / EN 14617-1 | $\le 0.05\%$ | $0.02\% – 0.03\%$ |
| Flexural Strength | ASTM C880 / EN 14617-2 | $\ge 35.0 \text{ MPa}$ | $42.0 – 55.0 \text{ MPa}$ |
| Compressive Strength | ASTM C170 / EN 14617-15 | $\ge 150 \text{ MPa}$ | $190 – 230 \text{ MPa}$ |
| Mohs Hardness | EN 101 / Scratch Test | $\ge$ Scale 6 | Scale 7 (Crystalline Quartz) |
| Chemical Resistance | ASTM C650 / EN 14617-10 | Minimum Class UB | Class UA (Resistant to acids/alkalis) |
| Stain Resistance | ANSI Z124.6 Performance | Pass Criteria | No residual staining (Class I) |
2. Standard Slab Dimensions & Jumbo Slab Programs
Dimensional Categorization and Target Architectural Use Cases
The selection of jumbo quartz slab dimensions directly influences both budget allocation and architectural execution. Production lines organize slab outputs into three primary dimensional formats, each tailored to distinct commercial and residential applications.
┌────────────────────────────────────────────────────────┐
│ Super Jumbo: 3500mm x 2000mm (Seamless Commercial) │
│ ┌──────────────────────────────────────────────────┐ │
│ │ Jumbo Slab: 3200mm x 1600mm (Standard North Am.) │ │
│ │ ┌────────────────────────────────────────────┐ │ │
│ │ │ Standard Slab: 3000mm x 1400mm (Multi-Unit)│ │ │
│ │ │ │ │ │
│ │ └────────────────────────────────────────────┘ │ │
│ └──────────────────────────────────────────────────┘ │
└────────────────────────────────────────────────────────┘
A. Standard Form Factor ($3000 \times 1400 \text{ mm}$ / $118″ \times 55″$)
Target Application: High-density, multi-family residential developments, hospitality guestroom en-suites, and standardized modular kitchen projects.
Procurement Rationale: Minimizes raw material costs when design footprints fit within a 1.4-meter width limit. This prevents paying for excess material that would end up as scrap.
B. Jumbo Program ($3200 \times 1600 \text{ mm}$ / $126″ \times 63″$)
Target Application: The international standard for residential kitchen islands, expansive full-height vertical wall paneling, and commercial reception surfaces.
Procurement Rationale: This format matches standard North American and European kitchen layouts. It allows for a deep $900\text{ mm}$ to $1200\text{ mm}$ kitchen island alongside matching $600\text{ mm}$ deep perimeter countertops from a single slab, optimizing material yield.
C. Super Jumbo Program ($3500 \times 2000 \text{ mm}$ / $138″ \times 79″$)
Target Application: Large-scale commercial lobbies, seamless luxury kitchen islands, and high-end architectural focal points requiring continuous veining.
Procurement Rationale: Eliminates intermediate seams on large architectural surfaces. This format requires specialized multi-axis CNC handling systems and advanced Breton press configurations capable of maintaining uniform pressure distribution across a $7.0\text{ m}^2$ surface area.
Net vs. Gross Dimensions: Edge Trim Dynamics
Procurement managers must account for the difference between Gross Production Dimensions and Net Usable Surface Areas.
During high-vacuum pressing and subsequent edge curing, the outer perimeters of the slab develop an uncalibrated, resin-rich zone. This boundary area (typically extending $20\text{ mm}$ to $35\text{ mm}$ from the edge) is prone to micro-cracking and slight color variations due to edge-cooling thermal drops.
◄────────────────────────────── Gross Dimension (e.g., 3240mm) ──────────────────────────────►
┌────────────────────────────────────────────────────────────────────────────────────────────┐ ▲
│ Perimeter Trim Zone (20mm Resin-Rich Margin) │ │
│ ┌──────────────────────────────────────────────────────────────────────────────────────┐ │ │
│ │ │ │ │
│ │ │ │ Gross
│ │ │ │ Dimension
│ │ Net Usable Surface Area (e.g., 3200mm) │ │ (e.g.,
│ │ │ │ 1640mm)
│ │ │ │ │
│ │ │ │ │
│ └──────────────────────────────────────────────────────────────────────────────────────┘ │ │
│ │ │
└────────────────────────────────────────────────────────────────────────────────────────────┘ ▼
◄─────────────────────────────── Net Dimension (e.g., 3200mm) ────────────────────────────►
A factory-cleared gross slab measuring $3240 \times 1640 \text{ mm}$ yields a guaranteed net usable area of $3200 \times 1600 \text{ mm}$. Fabricator cutting programs must be configured to trim away this perimeter margin.
Attempting to include these uncalibrated margins in a final countertop layout risks long-term structural failure, such as edge cracking under load, due to concentrated internal stresses.
3. Thickness Selection & Structural Load Dynamics
Choosing between $12\text{ mm}$, $20\text{ mm}$, and $30\text{ mm}$ thicknesses requires a careful balance of aesthetic intent, structural load requirements, and material cost management.
12mm (1/2") 20mm (3/4") 30mm (1-1/4")
┌─────────────────┐ ┌─────────────────┐ ┌─────────────────┐
│ Vertical Clad │ │ Corbel Support │ │ Unsupported OK │
│ & Light Duty │ │ Required > 8" │ │ Clear Span >12" │
└─────────────────┘ └─────────────────┘ └─────────────────┘
◄── Weight: 30kg/m² ────── Weight: 50kg/m² ────── Weight: 75kg/m² ──►
12 mm Thickness ($1/2″$)
Weight Metric: $\approx 30 \text{ kg/m}^2$ ($6.14 \text{ lbs/ft}^2$).
Structural Characteristics: High flexural elasticity; structural integrity depends on continuous subsurface support.
Primary Application: Vertical wall cladding, elevator cab paneling, integrated furniture cabinetry, and commercial retail millwork facing.
Installation Requirement: Requires a 100% continuous coverage thin-set polyurethane adhesive bed when mounting to vertical substrates to avoid hollow failure points.
20 mm Thickness ($3/4″$)
Weight Metric: $\approx 50 \text{ kg/m}^2$ ($10.24 \text{ lbs/ft}^2$).
Structural Characteristics: Balances high tensile strength with mid-range structural mass.
Primary Application: Standard multi-family residential countertops, bathroom vanities, and laminated mitered-edge assemblies.
Cantilever Thresholds: Under standard National Kitchen & Bath Association (NKBA) guidelines, an unsupported cantilever overhang is limited to a maximum of $200\text{ mm}$ ($8″$). Any expansion beyond this limit requires structural steel corbels spaced at a maximum of $600\text{ mm}$ intervals along the support framework.
30 mm Thickness ($1-1/4″$)
Weight Metric: $\approx 75 \text{ kg/m}^2$ ($15.36 \text{ lbs/ft}^2$).
Structural Characteristics: Maximum structural rigidity; high self-supporting capacity with negligible deflection risk.
Primary Application: Premium residential kitchen surfaces, commercial bars, heavy-use service counters, and outdoor hospitality surfaces.
Cantilever Thresholds: Can safely accommodate an unsupported cantilever overhang up to $300\text{ mm}$ ($12″$) without additional sub-structures, provided at least 70% of the total slab mass is anchored to the base cabinetry support structure.
Engineering Deflection and Mechanical Load Calculations
To calculate the structural deflection behavior of an engineered quartz counter under a point load, engineers apply the classic beam deflection equation for a cantilever configuration:
Where:
$\delta$ = Elastic deflection deflection measured at the outer edge ($\text{mm}$).
$P$ = Concentrated downward point load force ($\text{N}$).
$L$ = Length of the unsupported cantilever overhang ($\text{mm}$).
$E$ = Flexural Modulus of Elasticity of the quartz matrix ($\approx 4.5 \times 10^4 \text{ MPa}$ or $\text{N/mm}^2$).
$I$ = Area Moment of Inertia of the cross-section ($I = \frac{b \cdot h^3}{12}$, where $b$ is the width section and $h$ is the slab thickness).
Substituting the moment of inertia formula directly into the deflection equation shows the strong impact of thickness on structural stability:
Because the deflection varies inversely with the cube of the thickness ($h^3$), a $20\text{ mm}$ slab will deflect approximately 3.375 times more than a $30\text{ mm}$ slab under an identical load and overhang length.
This mathematical relationship explains why $30\text{ mm}$ configurations are preferred for heavy commercial projects; they provide superior resistance to cracking caused by excessive deflection or accidental point loads.
4. Yield Optimization & CNC Fabricator Nesting Algorithms
Vein Matching Strategies: Bookmatch vs. Continuous Flow
The complex patterns of Calacatta quartz slabs require careful layout planning before fabrication to avoid pattern mismatches at seams. There are two primary layout strategies used to maintain design continuity across multi-slab projects:
A. Bookmatched Arrays (A + B Slabs)
During production, pairs of sequential blocks are polished in opposing mirror-image directions. Slab A is polished on its top face, while Slab B is polished on its bottom face. This mirrors the vein paths along the central longitudinal axis.
[ Slab A: Normal Flow ] [ Slab B: Mirrored Flow ]
┌───────────────────────────┐ ┌───────────────────────────┐
│ \ │ │ / │
│ \ │ │ / │
│________\_________________ │ | │ _________________/________│
│ \ │ | │ / │
│ \ │ | │ / │
└───────────────────────────┘ └───────────────────────────┘
▲ ▲
└─────┴── Seam Mirroring Centerline
Best For: Central island feature seams, full-height bookmatched wall assemblies, and feature wall installations.
Procurement Requirement: Slabs must be ordered in balanced, paired A/B sets directly from the manufacturer’s inventory to ensure color and grain consistency.
B. Continuous End-Match Flow
Slabs are fabricated sequentially from a single production run, maintaining a consistent pattern direction across the layout.
[ Slab 1: Batch X ] [ Slab 2: Batch X ]
┌───────────────────────────┐ ┌───────────────────────────┐
│ \ │ │ \ │
│ \ │ │ \ │
│________\_________________ │ ───► │________\_________________ │
│ \ │ │ \ │
│ \ │ │ \ │
└───────────────────────────┘ └───────────────────────────┘
▲ ▲
└───┴── Continuous Pattern Join
Best For: Perimeter L-shaped kitchens and linear commercial bars.
Procurement Requirement: Slabs must share matching production batch numbers to prevent noticeable color shifts at the joints.
CNC Nesting Algorithms and Yield Maximization
To minimize material waste on high-volume projects, fabrication shops utilize specialized CNC nesting software (such as AlphaCam or Slabsmith). These programs map the geometric parts onto digital high-resolution photos of the actual slabs. This process relies on a clear mathematical yield formula:
┌─────────────────────────────────────────────────────────────────────────┐
│ ┌────────────────────────┐ ┌──────────────────────┐ ┌───────────────┐ │
│ │ Component Part 1 │ │ Component Part 2 │ │ Comp. Part 3 │ │
│ │ │ │ │ └───────────────┘ │
│ └────────────────────────┘ └──────────────────────┘ │
│ (Remaining Interstitial Spaces Residual Yield For Splashbacks/Upstands)│
└─────────────────────────────────────────────────────────────────────────┘
Maximizing Yield in L-Shaped Layouts
For an L-shaped counter layout, there are two primary options for handling the corner joint: a $45^\circ$ mitered seam or a straight $90^\circ$ butt joint.
45° Mitered Seam 90° Butt Joint
┌─────────────────────┐/─── ┌─────────────────────┐────
│ / │ │ │ │
│ / │ │ │ │
│ / │ │ │ │
│ / │ └─────────────────────┘ │
│ / │ ┌─────────────────────┐ │
│ / │ │ │ │
└───────────────/ │ │ │ │
└─────────┘ └─────────────────────┘────
45-Degree Mitered Seam: This choice provides excellent continuity for the prominent Calacatta veins around the corner, but it generates higher material waste in the cutting layout due to the diagonal cuts.
90-Degree Butt Joint: This layout is significantly more material-efficient, often saving up to 15% in slab yield. However, it creates an abrupt break in the vein pattern at the seam.
To offset the higher waste of a mitered layout, nesting software can utilize the remaining interstitial triangular scrap spaces to cut matching elements like backsplashes, vanity tops, or fireplace hearth components. This strategy helps keep total material waste below a targeted 8% threshold.
5. Container Loading Logistics & Supply Chain Risk Management
Packaging Engineering and Structural Crating
Transporting engineered stone across international supply chains requires heavy-duty packaging to withstand ocean freight forces. Slabs are packed into reinforced wooden or structural A-frames made from fumigated solid timber, in full compliance with ISPM-15 standards.
Side-Loading A-Frame Bunch Top-Loading Closed Crate
┌──────────────┐ ┌───────────────────────┐
/│ │\ │ ╬═══ Timber Bracing ╬ │
/ │ Slab Stack │ \ │ │
/ │ (8-10 Slabs)│ \ │ Slab Stack inside │
/ │ │ \ │ Heavy Fumigated Crate│
/────┴──────────────┴────\ └───────────────────────┘
A-Frame Bundles: This is the industry standard for large stone wholesalers. Slabs are loaded face-to-face in pairs, separated by protective polyethylene sheets to prevent surface abrasion. Each bundle is secured with high-tensile steel straps.
Closed Timber Crates: Typically used for cut-to-size project deliveries. Slabs are fully enclosed in wooden crates with internal styrofoam padding and timber bracing to prevent shifting during transit.
Container Loading Capacities and Regional Weight Constraints
Optimizing shipping configurations requires careful balancing of slab volume against strict international maritime and regional highway weight laws.
North American Max Limit (~21-22 Tons) Euro / Asia Pacific Max (~25-26 Tons)
┌────────────────────────────────────┐ ┌────────────────────────────────────┐
│ ▓▓▓▓▓▓▓▓▓▓▓▓▓▓ │ │ ▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓▓ │
│ (Lower Payload Capacity) │ │ (Maximum Density Optimization) │
└────────────────────────────────────┘ └────────────────────────────────────┘
The payload limits for standard 20-foot heavy-duty ocean containers vary significantly by destination:
A. North American Intermodal Limit (USA & Canada)
Maximum Target Payload: $\approx 19,500 \text{ kg to } 21,000 \text{ kg}$ ($43,000 \text{ lbs to } 46,300 \text{ lbs}$).
Procurement Impact: Exceeding these limits violates US Overweight Container regulations, leading to heavy fines and requiring expensive cargo stripping at the port of entry.
B. European Union & Asia-Pacific Maritime Limit
Maximum Target Payload: $\approx 24,000 \text{ kg to } 26,000 \text{ kg}$.
Procurement Impact: Allows for maximum density utilization of the shipping container, lowering the per-slab transport cost.
The following master matrix outlines standard container capacities based on a net cargo weight limit of 21,000 kg (North American standard) versus 25,000 kg (European standard):
| Slab Dimension Form Factor | Thickness Specification | Approx Slab Weight | Maximum Slabs per Bundle | Max Capacity (North America – 21T) | Max Capacity (Euro/Asia – 25T) |
| $3000 \times 1400 \text{ mm}$ | $12 \text{ mm}$ | $126 \text{ kg}$ | 20 Slabs | 166 Slabs / 8 Bundles | 198 Slabs / 10 Bundles |
| $3000 \times 1400 \text{ mm}$ | $20 \text{ mm}$ | $210 \text{ kg}$ | 15 Slabs | 100 Slabs / 7 Bundles | 119 Slabs / 8 Bundles |
| $3000 \times 1400 \text{ mm}$ | $30 \text{ mm}$ | $315 \text{ kg}$ | 10 Slabs | 66 Slabs / 6 Bundles | 79 Slabs / 8 Bundles |
| $3200 \times 1600 \text{ mm}$ | $12 \text{ mm}$ | $154 \text{ kg}$ | 20 Slabs | 136 Slabs / 7 Bundles | 162 Slabs / 8 Bundles |
| $3200 \times 1600 \text{ mm}$ | $20 \text{ mm}$ | $256 \text{ kg}$ | 15 Slabs | 82 Slabs / 6 Bundles | 97 Slabs / 7 Bundles |
| $3200 \times 1600 \text{ mm}$ | $30 \text{ mm}$ | $384 \text{ kg}$ | 10 Slabs | 54 Slabs / 5 Bundles | 65 Slabs / 6 Bundles |
| $3500 \times 2000 \text{ mm}$ | $20 \text{ mm}$ | $350 \text{ kg}$ | 12 Slabs | 60 Slabs / 5 Bundles | 71 Slabs / 6 Bundles |
| $3500 \times 2000 \text{ mm}$ | $30 \text{ mm}$ | $525 \text{ kg}$ | 8 Slabs | 40 Slabs / 5 Bundles | 47 Slabs / 6 Bundles |
6. Case Study: EDG Stone Factory’s Global Footprint
Industrial Infrastructure and Capacity Profile
As a leading premium quartz slab wholesale manufacturer and exporter, EDG Stone Factory maintains a state-of-the-art production facility dedicated to the fabrication of high-fidelity Calacatta quartz slabs and precision finished countertops. The manufacturing facility features four advanced multi-axis vacuum vibro-compression lines, yielding an annual capacity of over $1,200,000\text{ m}^2$ of engineered surfaces.
[ EDG Stone Factory Industrial Eco-System ]
│
┌─────────────────────────────────────────┼─────────────────────────────────────────┐
▼ ▼ ▼
[ Bretonstone Technology Press ] [ KEDA Polishing Lines ] [ 5-Axis CNC & Waterjet Matrix ]
High-Vacuum Compaction 36 Multi-Head Diamond Polish Precision Cut-to-Size
Density: 2.45 g/cm³ Specular Gloss > 88 Units Mitred Seams & Edge Profiles
The facility is anchored by automated raw material delivery systems that preserve chemical purity across the quartz grain spectrum. The calibration and finishing stages utilize 36-head KEDA automated polishing lines, consistently achieving a specular gloss rating above 88 units. This process yields an exceptionally flat surface with a precise thickness tolerance of $\pm0.5\text{ mm}$, exceeding typical global fabrication requirements.
Advanced Customization & Fabrication Capabilities
Beyond raw slab production, EDG Stone Factory provides integrated custom fabrication services for large-scale international hospitality and residential projects.
The custom fabrication division is equipped with Italian 5-axis CNC saw-jet machines and high-speed waterjet cutting grids. This machinery allows the factory to execute complex architectural requirements directly from digital CAD / BIM files:
Intricate drop-in sink cutouts with polished inner edges.
Complex drainboard grooves.
A wide array of custom edge profiles, from classic eased edges to intricate multi-tiered laminated bullnose profiles.
Eased Edge (Standard) Laminated Mitred Apron (Luxury)
┌──────────────────┐ ┌──────────────────┐
│ │ │ │
└──────────────────┘ │ │─── Mitred Joint
│ ┌──────────────┘
│ │
└───┘
By completing the fabrication process under factory-controlled conditions, client field labor requirements are dramatically reduced, and any potential on-site cutting errors are effectively eliminated.
Rigorous Quality Assurance and International Compliance
EDG Stone Factory maintains strict quality control protocols across every stage of production. Each slab is inspected under an Automated Vision Inspection System (AVIS) to identify any superficial defects, including pigment clusters, aggregate voids, or vein discontinuities.
Slabs are meticulously categorized into three distinct quality tiers before international packaging:
[ Automated Vision Inspection System (AVIS) ]
│
┌────────────────┼────────────────┐
▼ ▼ ▼
[ Tier 1: Grade A ] [ Tier 2: Grade B ] [ Tier 3: Grade C ]
Commercial Elite Minor Inclusions Internal Recycled
No Defects Max Yield Hidden Backs Only Crushed Aggregates
Tier 1 (Grade A): Zero surface pinholes, flawless background consistency, and perfect vein alignment. Approved for prominent, high-end residential applications and commercial feature walls.
Tier 2 (Grade B): Minor cosmetic variations or small mineral inclusions (<2 mm) outside the main design field. Suitable for secondary multi-family housing projects or sections where the back of the material is concealed.
Tier 3 (Grade C): Slabs with visible pigment clusters or structural micro-fissures. These are rejected for surface use and recycled back into the crushing plant to be used as aggregate.
This strict quality management framework ensures that all deliveries meet international compliance standards, including NSF/ANSI Standard 51 (certifying safe contact for food splash zones) and Greenguard Gold Certification (guiding strict compliance for low volatile organic chemical emissions into interior architectural spaces).
7. Comprehensive JSON-LD FAQ Schema & Advanced Technical Q&A
Advanced Technical Q&A
Q1: What specific factors cause yellowing or discoloration in Calacatta quartz slabs over time, and how can this be avoided?
Answer: The primary cause of yellowing in engineered quartz surfaces is photochemical degradation of the unsaturated polyester resin binder under exposure to ultraviolet (UV) radiation. The aromatic rings within standard polymer resins act as chromophores, absorbing UV light waves ($290\text{ nm} – 350\text{ nm}$). This absorption triggers free-radical oxidation, breaking down the polymer chains and turning the clear resin a yellowish-brown.
To prevent this, Calacatta quartz countertops should only be specified for interior applications away from direct sunlight. Additionally, production facilities can integrate specialized hindered amine light stabilizers (HALS) and UV absorbers into the chemical resin formulation to help neutralize these free radicals and preserve color stability.
Q2: How does thermal shock affect Calacatta quartz surfaces, and what are the precise guidelines for heat exposure?
Answer: Engineered quartz surfaces have a thermal expansion coefficient of approximately $1.5 – 2.5 \times 10^{-5} \text{ K}^{-1}$. Because the quartz aggregate and the organic resin binder have different rates of thermal expansion, sudden changes in temperature can cause localized structural stress. Placing a hot pan (above $150^\circ\text{C}$ / $300^\circ\text{F}$) directly onto the surface creates a sharp thermal gradient. This localized heat expansion can overcome the material’s flexural tensile strength ($42-55\text{ MPa}$), leading to micro-fissuring or visible cracking.
In commercial kitchen designs, hot wells and cooking appliances must be separated from quartz surfaces using high-temperature silicone gaskets. For all residential applications, the use of protective trivets or hot pads is required to avoid thermal shock damage.
Q3: Which cutting parameters should CNC fabricators use to prevent edge chipping when machining Calacatta quartz?
Answer: To minimize chipping when cutting premium quartz surfaces, CNC waterjet and saw equipment must be precisely calibrated. For a standard 20 mm thick slab using a diamond-segmented bridge saw blade, the initial entry cut should use a reduced feed speed of approximately $1.0 – 1.2\text{ m/min}$, with an optimal rotational shaft speed between 1800 and 2200 RPM.
Once the blade is fully engaged within the material, the linear feed rate can step up to $1.8 – 2.4\text{ m/min}$. The final exit edge cut must slow back down to $1.0\text{ m/min}$ to prevent breakout fractures on the back of the slab. Additionally, maintaining continuous, high-volume water cooling is essential to prevent localized resin overheating and ensure a clean, precise cut.
Q4: Why is a 90-degree internal corner cutout prone to cracking, and how should it be modified for safety?
Answer: In structural engineering, sharp 90-degree internal corners create severe stress concentrations. When a kitchen counter shifts due to structural settling or when the material undergoes thermal expansion, internal stress forces naturally migrate toward these sharp corners. If the corner is a sharp 90-degree angle, the stress can easily exceed the material’s structural limits, causing a crack to propagate outward.
Incorrect (Sharp 90°) Correct (Radiused Corner)
┌──────────────────┐ ┌──────────────────┐
│ │ │ /────────────┘
│ │ │ / ◄── Min 10mm Radius
│ ┌─────────────┘ │ │ Relieves Stress
│ │ ◄── Sharp Corner │ │
│ │ Stress Point │ │
To eliminate this risk, all internal corner cutouts must be fabricated with a smooth, radiused corner. Industry standards require a minimum internal radius of $10\text{ mm}$ ($3/8″$). This curve effectively distributes stress forces across a larger surface area, preventing structural cracks from forming around the cooktop or sink openings.
Q5: Is Calacatta quartz suitable for commercial food preparation environments under international health codes?
Answer: Yes, premium engineered quartz surfaces are highly suitable for commercial food zones and carry full certification under NSF/ANSI Standard 51 for food equipment materials. Thanks to the vacuum vibro-compression manufacturing process, the material achieves a non-porous surface structure with water absorption metrics under 0.03%.
This prevents bacteria, mold, or food pathogens from penetrating the surface. The material is highly resistant to aggressive commercial sanitizing chemicals and requires no topical sealers, making it an exceptionally hygienic surface choice for commercial kitchens, hospitals, and high-traffic hospitality environments.
