Stone Slab Lifter

Stone Slab Lifter Supplier In China

Stone Slab Lifter - EDG

Our Slab Lifter clamp is designed for secure, vertical lifting of stone slabs directly from the stack to the hoist. Machined from aerospace‑grade aluminum alloy and anodized for corrosion resistance, the lifter weighs 15 lbs yet handles slabs up to 1.5 in (38 mm) thick and loads of 1,200 lbs. A spring‑loaded jaw automatically adjusts to slab thickness, and a replaceable polyurethane jaw liner prevents scratching. The top eye features a 360°‑swivel hoist ring with a positive‑lock keeper, ensuring the slab hangs plumb during crane or forklift transfers. All stress‑bearing surfaces are proof‑tested to 2× rated load for safety.

Stone Slab Lifter

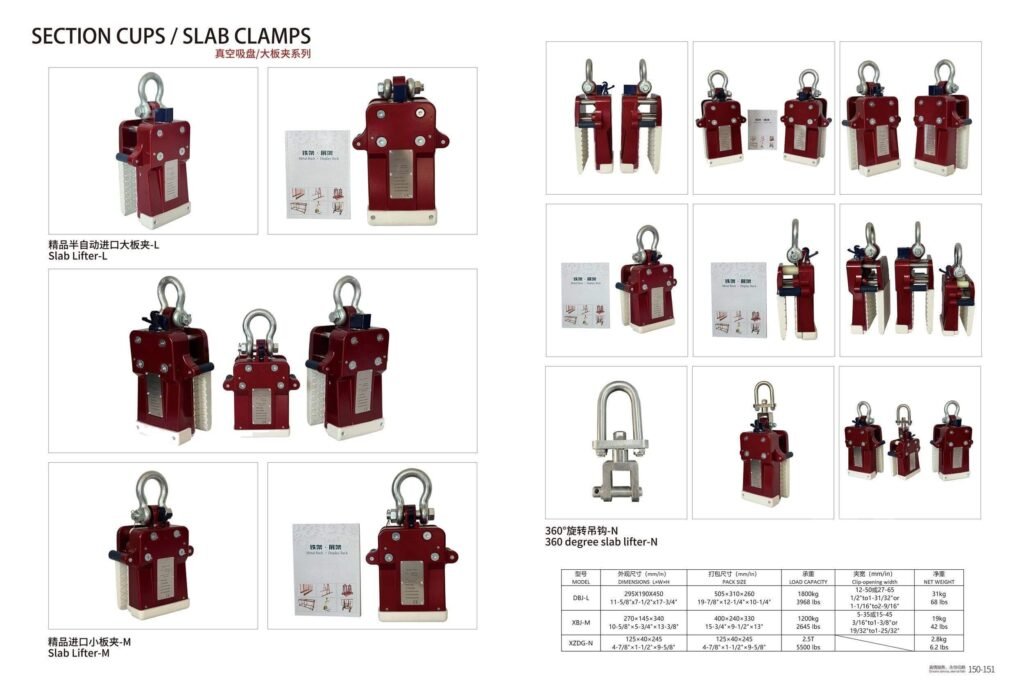

Stone Slab Lifter - L / M / 360 Degree Lifter - N

What differentiates our Slab Lifter is the built‑in self‑releasing mechanism: once lowered onto a pallet or slab rack, the clamp unlocks automatically, speeding unloading and reducing operator risk. Compared to manual wedge lifters, our device offers consistent clamping force and eliminates the need for separate spreader bars. The jaws open to 2 in (50 mm) to accommodate thick veneer panels, and the compact design fits between stacked slabs with only 1 in clearance. We provide on‑site training, spare jaw liners, and custom load‑test certificates. Backed by a 5‑year structural warranty and available globally, this Slab Lifter increases safety and productivity in any stone yard or fabrication shop.

RFQ About The Stone Slab Lifter

Top 10 RFQ Q&A

  1. Q: Max slab thickness?
    A: 1.5 in (38 mm).

  2. Q: Load capacity?
    A: 1,200 lbs.

  3. Q: Weight?
    A: 15 lbs (6.8 kg).

  4. Q: Jaw liner material?
    A: Polyurethane.

  5. Q: Swivel ring rotation?
    A: 360° with locking keeper.

  6. Q: Auto‑release feature?
    A: Yes, built‑in.

  7. Q: Clearance needed?
    A: 1 in between slabs.

  8. Q: Proof‑test certificate?
    A: Provided on request.

  9. Q: Warranty?
    A: 5 years on frame.

  10. Q: Bulk orders?
    A: Discounts for 5+ units.
